MASDAF

YNM EN 12845

products.detail.productType

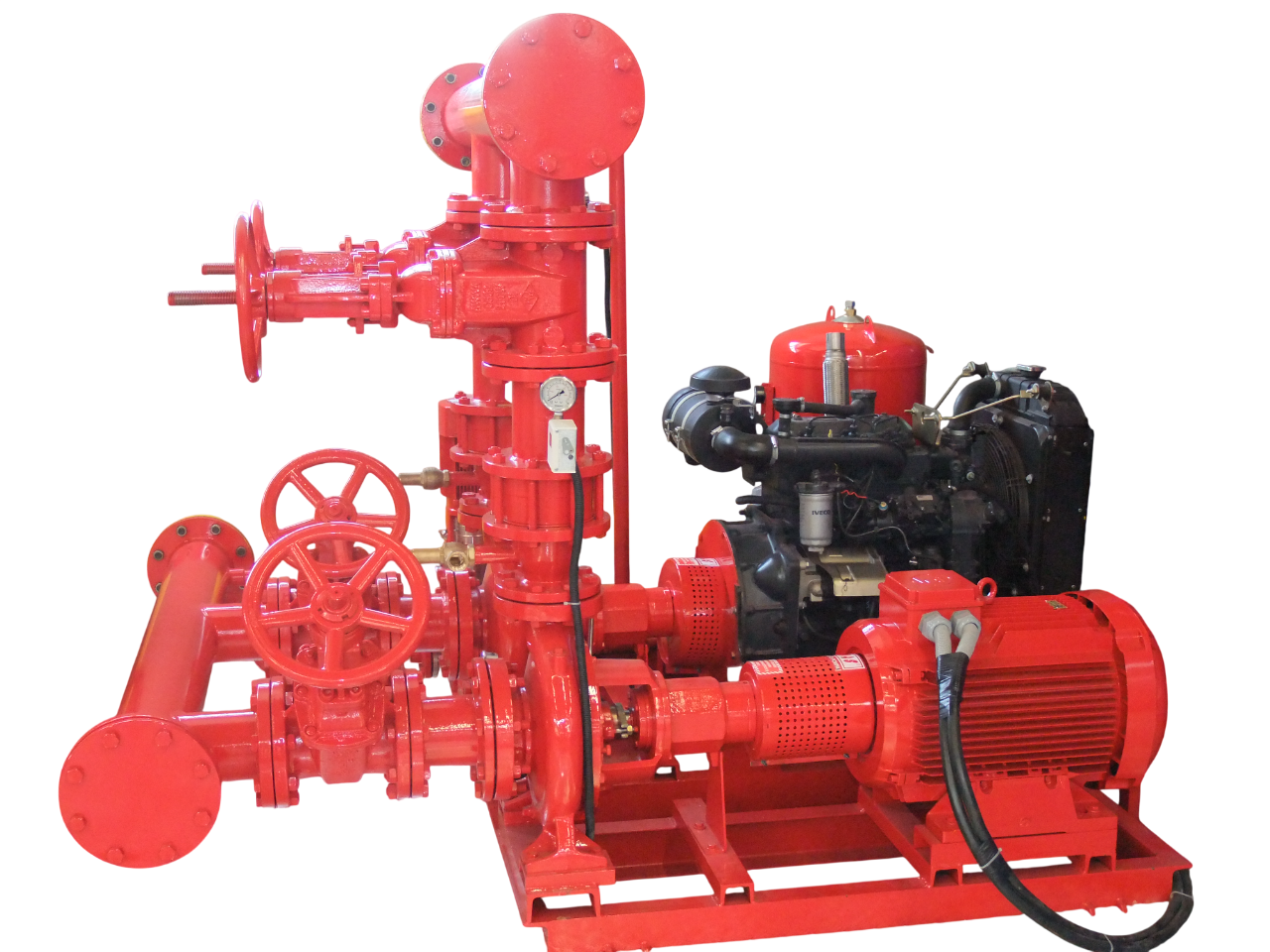

Fire Pump

  • Pump design compliant with EN 12845 standards
  • Flexible coupling in the pump-motor connection, mounted on a base frame
  • Various motor options (electric / diesel)
  • Compact design for easy maintenance and accessibility
  • Staged operation support in multi-pump systems
  • Optional accessory integration: eccentric reducer, flow meter, and additional valves
  • Firefighting systems for low-, medium-, and high-risk areas
Flow Range11 – 227 m³/h
Pressure Range30 – 140 m
Speed Range3000 – 3600 rpm
Suction Flange DiameterDN 50 – DN 125
Discharge Flange DiameterDN 32 – DN 100
Temperature Range0 – 60 °C

Pump Selection Program

”Smartselect Pump Finder”, developed with an intuitive operating concept and a user-friendly interface according to user demands, serves as a central part of the sales process for selecting and configuring centrifugal pumps. Due to the smart database system of Smartselect, which is designed to meet the requirements of modern information technologies, enabling the visualisation and utilisation of all product-specific data throughout the sales process. The selection outputs and the prepared offer can be sent directly via email, which saves time.

The Smartselect programme is accessible here.
