Inline pumps are designed as centrifugal pumps in which the suction and discharge connections are located on the same axis. Thanks to their compact structure, they can be connected directly to the pipeline and provide significant space savings within the system. Inline pumps are widely used in applications such as water supply, circulation, pressurization, HVAC systems, industrial processes, and similar applications. Their main advantages include a compact design, easy fluid intake enabled by low NPSH (Net Positive Suction Head) design, low noise levels, high efficiency, and ease of maintenance.
Inline pumps operate based on a single-stage centrifugal principle and are suitable for transferring clean liquids or fluids containing very low levels of solid particles. Having suction and discharge flanges on the same axis simplifies installation and maintenance processes. Inline pumps are generally offered with wet-rotor or dry-rotor motor options, as well as versions controlled by frequency inverters. Frequency inverter–controlled models optimize motor speed according to system flow and pressure requirements, resulting in improved energy efficiency and lower operating costs.
Pump casings and flanges are manufactured in accordance with ISO/EN standards. Compliance with these standards increases ease of installation and operational safety. Modular construction allows the pump to be quickly removed from the pipeline during maintenance. Motor efficiency class, coupling design, and frequency drive options help optimize energy consumption, vibration levels, and operating costs.
Applications of Inline Pumps
Inline pump models are preferred particularly in systems with limited space along the pipeline, thanks to having suction and discharge lines on the same axis. Their compact and modular casing structures allow fast installation and integration in various facilities. Quiet operation, low energy consumption, and continuous operating performance are the core advantages of inline pumps. Key application areas include:
- Building Technologies: Used in heating and cooling systems for hot water, chilled water, and general circulation lines. Inline pumps provide stable flow and head performance in air handling units, fan-coil systems, and underfloor heating applications. ModulA Red, ModulA Blue, and ModulA-D models contribute to reduced energy consumption in HVAC applications with high-efficiency motor options.

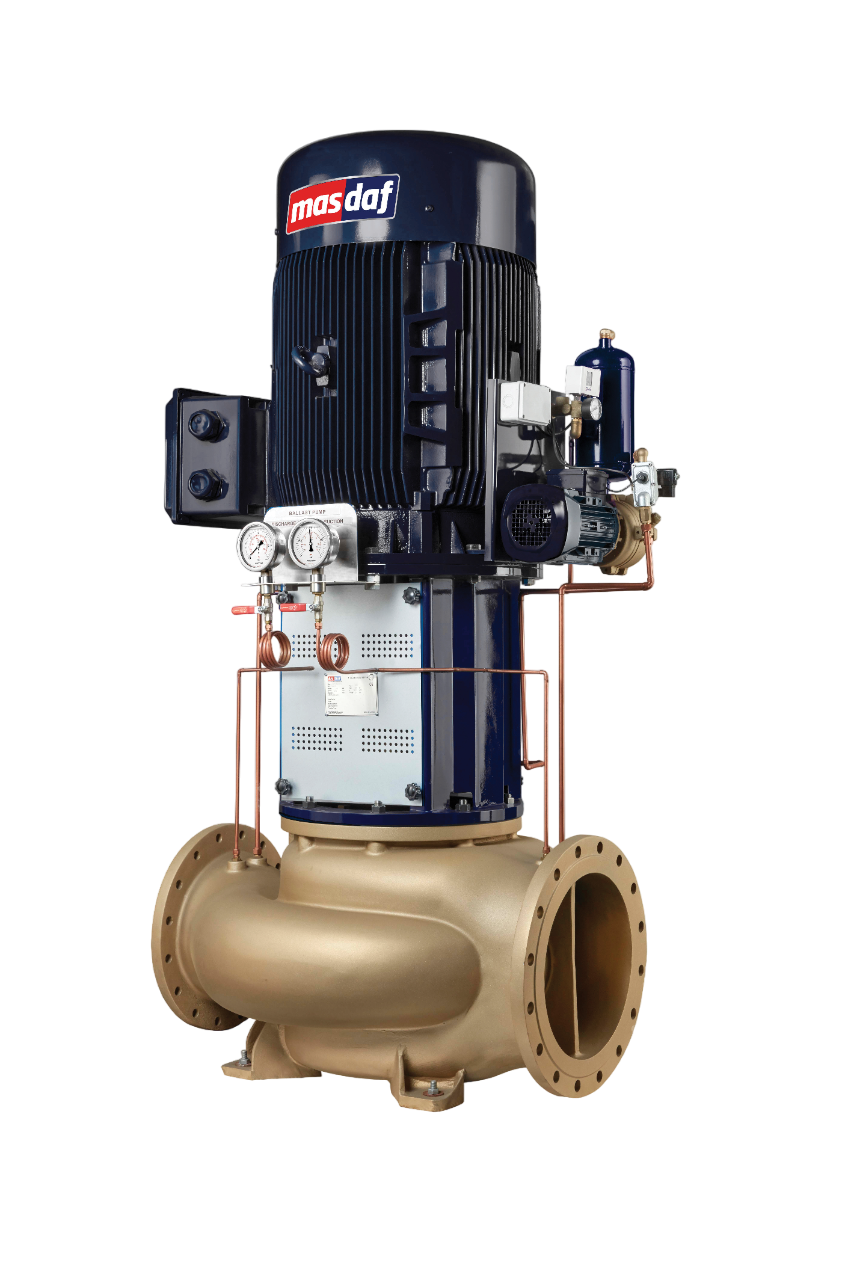

- Industrial Technologies: Used in process water supply, pressure boosting, heat exchanger circuits, filtration lines, and general liquid transfer. CSV and INM GenIO models deliver reliable performance in industrial circuits with wide flow and head ranges and robust construction.
- Marine Applications: Preferred for onboard freshwater, seawater, cooling water, and auxiliary circulation systems. CSV, INM, and INM Duo models offer solutions suitable for marine operations thanks to their corrosion resistance and low maintenance requirements.

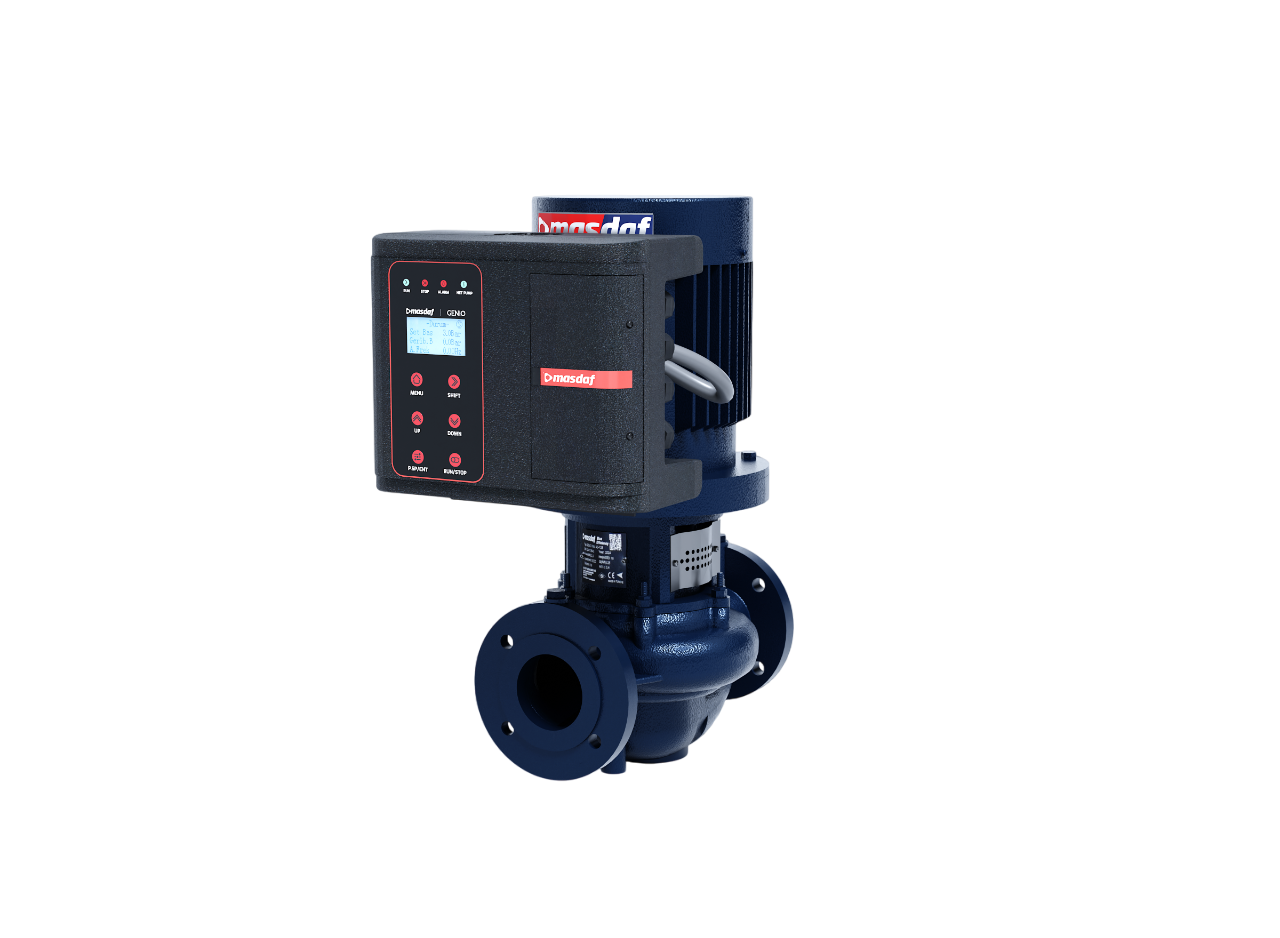

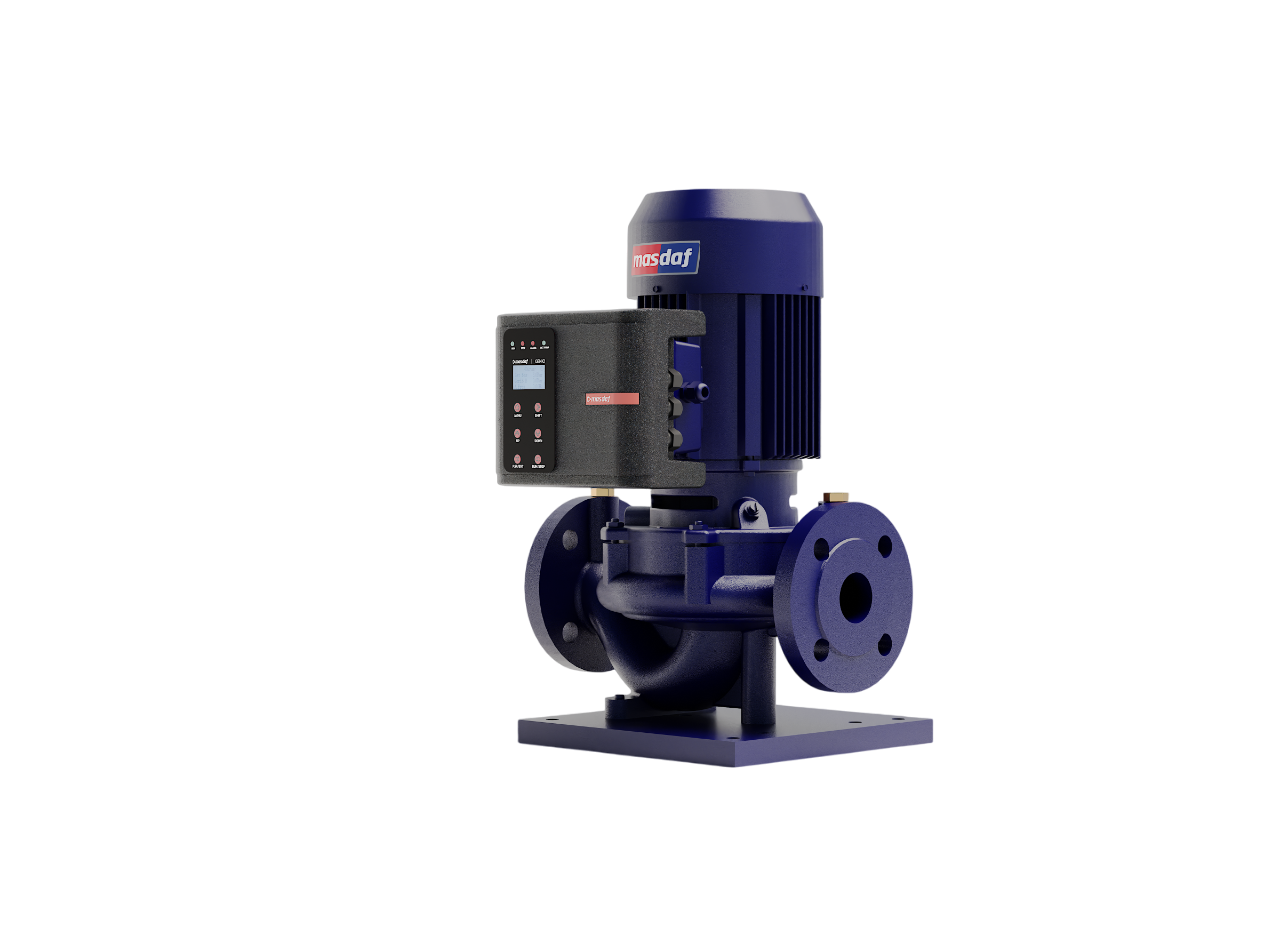

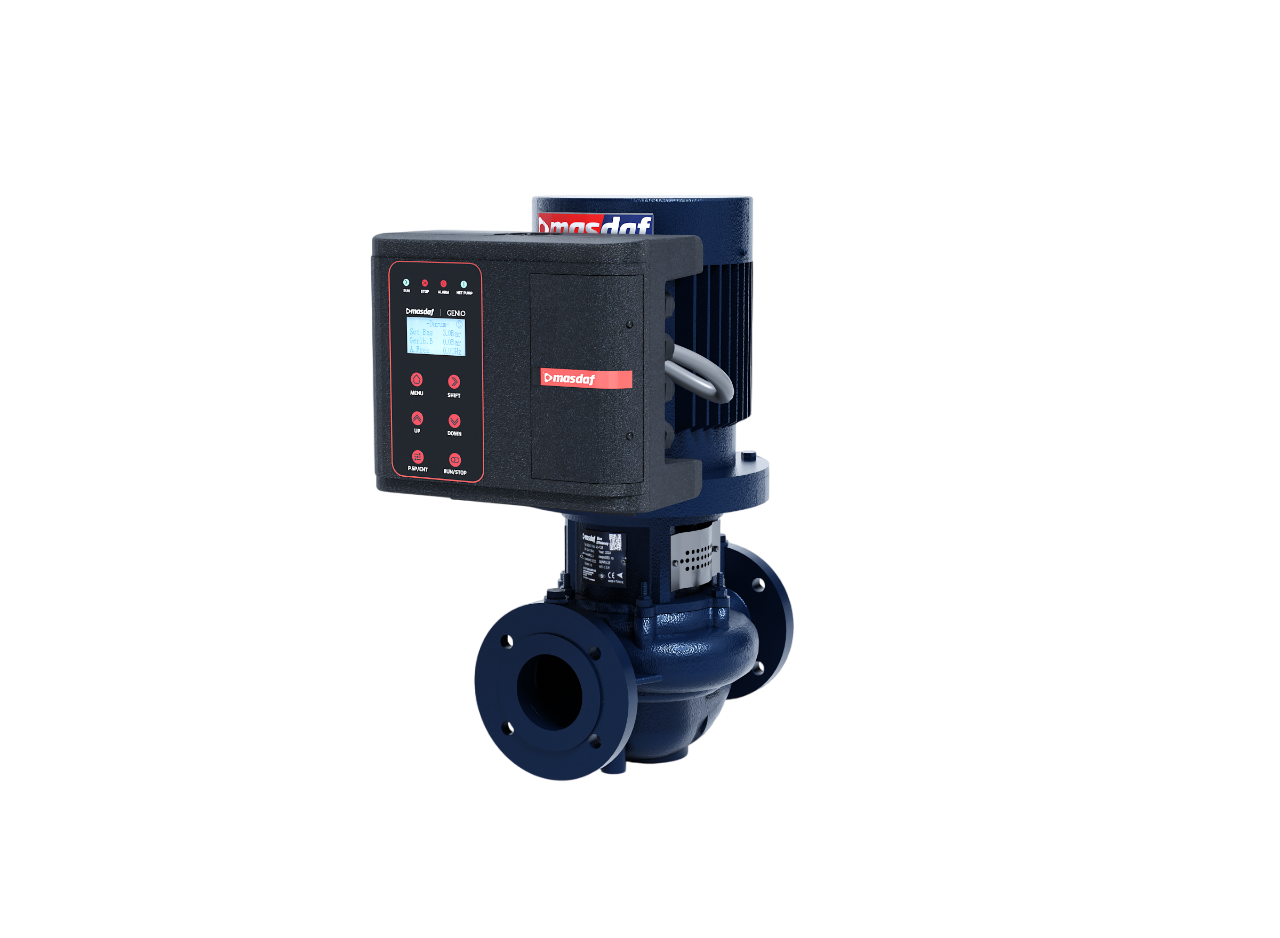

- Energy-Efficient Systems: Frequency inverter–controlled INM GenIO and INX GenIO models automatically adjust motor speed in systems requiring variable flow, optimizing energy consumption. Their integration capability with building automation systems ensures ease of control.
Inline pumps support operational continuity through ease of maintenance while improving overall facility efficiency.
Long-Service Performance with Inline Pump Models
Inline pumps deliver long-lasting and reliable performance while offering a wide range of flow and pressure options suitable for various applications. Inline circulation pump constructions are designed in compliance with recommended standards and manufactured using durable materials to ensure long-term operation. Masdaf engineers provide optimized solutions for motor connections and flange structures, minimizing vibrations, mechanical losses, and wear.
Within this scope, the inline pump family includes both wet-rotor and dry-rotor models. Wet-rotor models such as ModulA Red, ModulA-D, and ModulA Blue offer energy efficiency and quiet operation advantages for residential, commercial building, and domestic water circulation applications. INM, INM Duo, and INM GenIO models, with their dry-rotor structures, provide high durability and heavy-duty performance in industrial facilities, marine applications, and pressure boosting systems. CSV models deliver high efficiency with their double-suction design and low NPSH values. INM and INM GenIO models stand out with their compact and energy-saving designs. The motor-mounted frequency inverter of the INM GenIO automatically optimizes pump performance, reducing energy consumption and extending system life.
ModulA Red ensures long-term use in residential and commercial buildings with its high-efficiency permanent magnet motor, quiet operation, power limitation function, and Wi-Fi connectivity. ModulA-D supports continuous performance in large facilities with its twin-pump design, smartphone-based pump communication, fault-operation messaging, and energy-saving control options.
ModulA Blue delivers efficient operation in both residential and industrial domestic hot water systems with its self-learning Smart technology, proportional–constant pressure control options, and motor protection features. INM Duo provides continuous performance in industrial and marine applications with twin installation and intelligent control options. In inline pump design, pump casings, flanges, and bearing systems are optimized for high durability. Easy spare part availability, user-friendly maintenance, and low operating costs are other key factors supporting the long service life of inline pumps.
Energy-Efficient and Durable Inline Pump Series
Inline pumps are designed to deliver high efficiency and long service life while ensuring energy savings. Advanced motor technologies, low energy consumption, and quiet operation provide maximum performance in industrial and commercial applications. Energy savings and durability are achieved in the following application areas:
- ModulA Red, ModulA Blue, and ModulA-D models provide energy savings in air conditioning, central heating, and underfloor heating systems with high-efficiency permanent magnet motor technology and power limitation features. Remote adapters and smart control options offer ease of operation.
- INM, INM GenIO, and CSV models provide energy-efficient and durable circulation in industrial processes with high flow and pressure ranges.
- CSV and INM Duo models ensure durability and energy savings in ballast, freshwater, and seawater pumping on ships. High temperature and pressure capacity delivers reliable performance under demanding conditions.
- INM GenIO and INX GenIO support energy savings with single-drive or dual-pump control functions and offer easy integration into system automation.
Inline pumps enhance system efficiency by combining energy efficiency, durability, and long service life. Each model delivers optimum performance with technical features tailored to its intended application.
Masdaf Inline Pump Options for Professional Applications
Inline pumps provide high performance and reliability in industrial, building, and marine applications requiring professional use. Thanks to their compact designs and automatic control systems, maintenance operations are fast and easy. Robust casing and flange designs support the long service life of inline pumps. High-efficiency motors and flexible coupling connections reduce mechanical losses and vibrations, improving overall system performance.
Masdaf inline pumps deliver professional solutions across various sectors. They can be safely used in industrial technologies requiring high flow and pressure, water supply and pressure boosting systems, cooling circuits, and general liquid transfer applications. In building technologies, they ensure efficient operation in central heating, air conditioning, and water circulation systems. Frequency inverter–controlled models optimize energy consumption while allowing easy integration with automatic control systems. User-friendly features are a key focus of Masdaf designs.
Frequently Asked Questions About Inline Pumps
What Does Inline Pump Mean?
An inline pump is a type of centrifugal pump in which the suction and discharge pipes are aligned on the same axis and can be connected directly to the pipeline. Its compact design provides ease of installation and integration without requiring additional frames or bases. It is widely used in water transfer and circulation applications and delivers high performance across various flow, pressure, and temperature ranges.
What Is an Inline Pump?
An inline pump is a centrifugal pump that can be mounted directly onto the pipeline with suction and discharge connections on a single axis. Its compact and modular structure offers ease of use in both industrial and building applications. Wet-rotor and dry-rotor options are available. Long service life and low maintenance requirements make inline pumps a preferred solution.
Which Sectors Use Inline Pumps?
Inline pumps are widely used in building technologies, industrial applications, and marine sectors. They deliver reliable performance in residential and commercial buildings, industrial facilities, and marine systems. With a wide range of flow, pressure, and temperature capabilities, they offer high efficiency across diverse applications.
Do Inline Pumps Provide Energy Efficiency?
Inline pumps feature energy-efficient designs with MEI ≥ 0.4. High-efficiency motors, frequency inverters, and optimized impeller designs reduce energy consumption. Features such as power limitation, proportional operation, and automatic control functions lower operating costs.
