MASDAF

INX

products.detail.productType

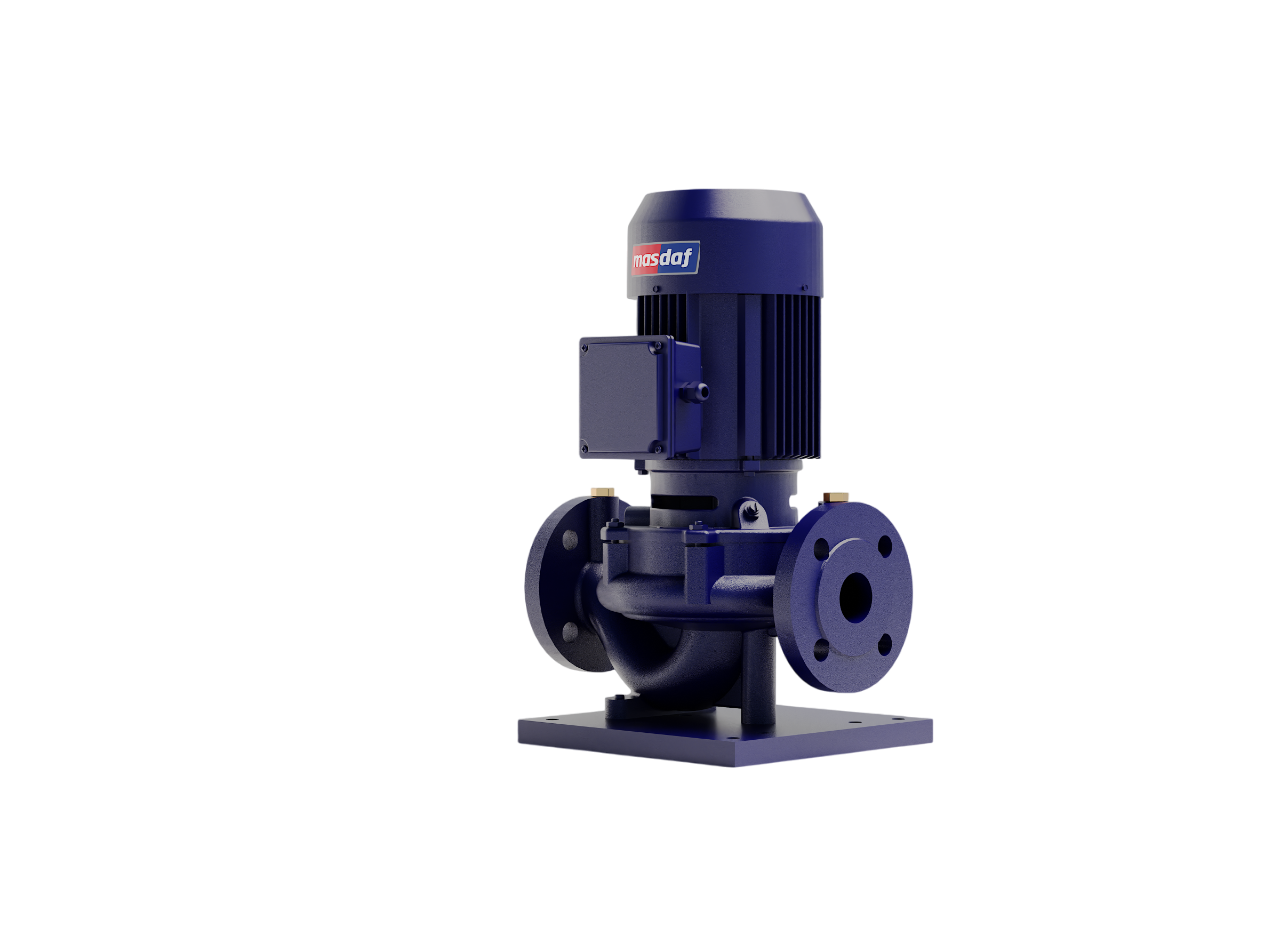

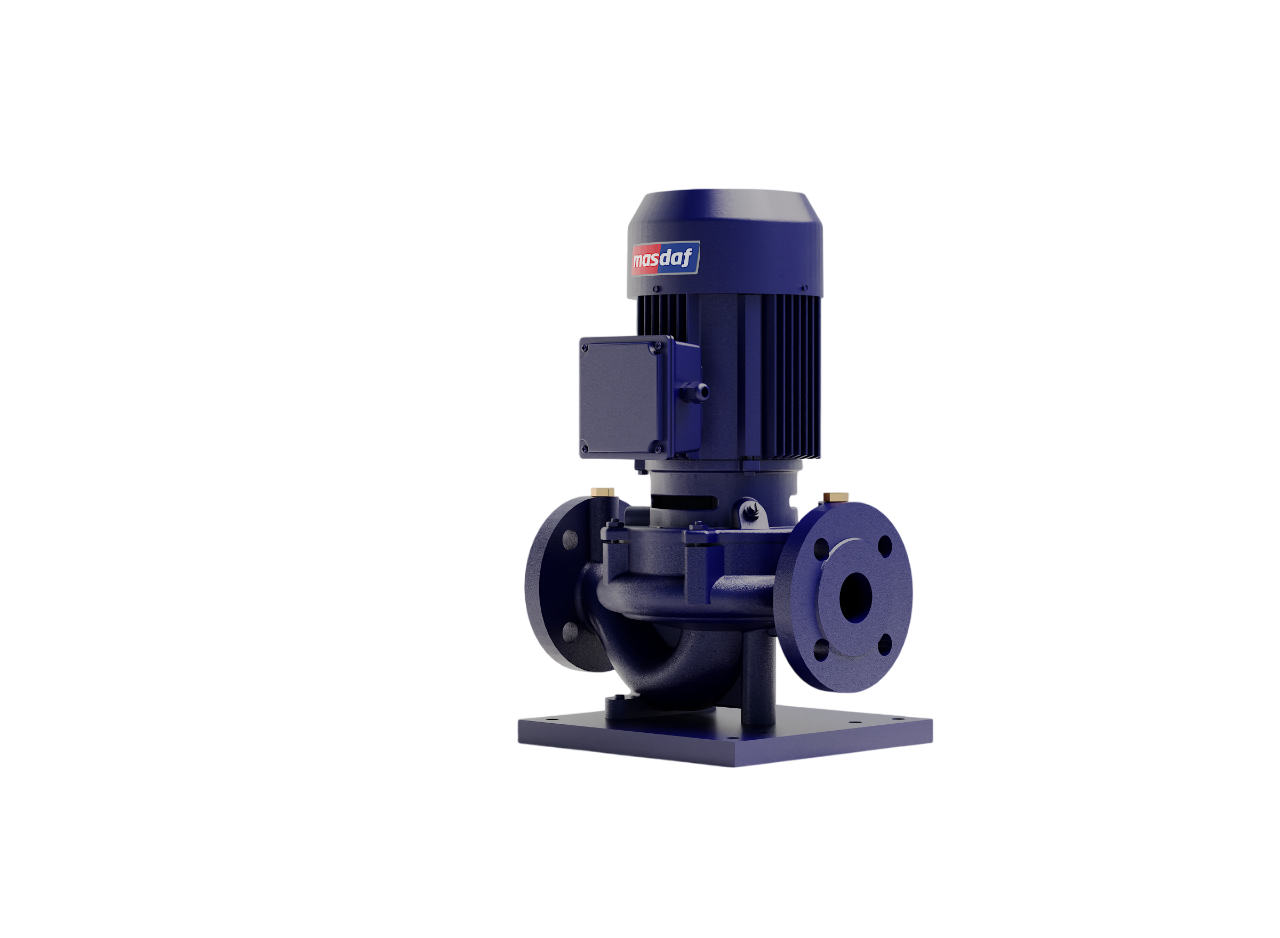

Dry Rotor Circulation Pump


  • Flange and impeller design compliant with ISO and EN standards
  • Single-stage, with suction and discharge flanges aligned on the same axis and having the same diameter
  • Interference-fit motor shaft using an adapter and flange at the pump–motor connection
  • Service-friendly with easy maintenance and fast spare parts availability
  • In heating and cooling systems, hot or cold water circuits
  • Suitable for condensate water lines and various industrial facilities
  • Irrigation and sprinkler systems
  • Industrial Processes
Flow Range2 - 50 m³/h
Pressure Range3 – 35 m
Speed Range1500 – 3000 rpm
Suction Flange DiameterDN 40 – DN 65
Discharge Flange DiameterDN 40 – DN 65
Temperature Range-25 – 120 °C

Pump Selection Program

”Smartselect Pump Finder”, developed with an intuitive operating concept and a user-friendly interface according to user demands, serves as a central part of the sales process for selecting and configuring centrifugal pumps. Due to the smart database system of Smartselect, which is designed to meet the requirements of modern information technologies, enabling the visualisation and utilisation of all product-specific data throughout the sales process. The selection outputs and the prepared offer can be sent directly via email, which saves time.

The Smartselect programme is accessible here.

Video thumbnail
